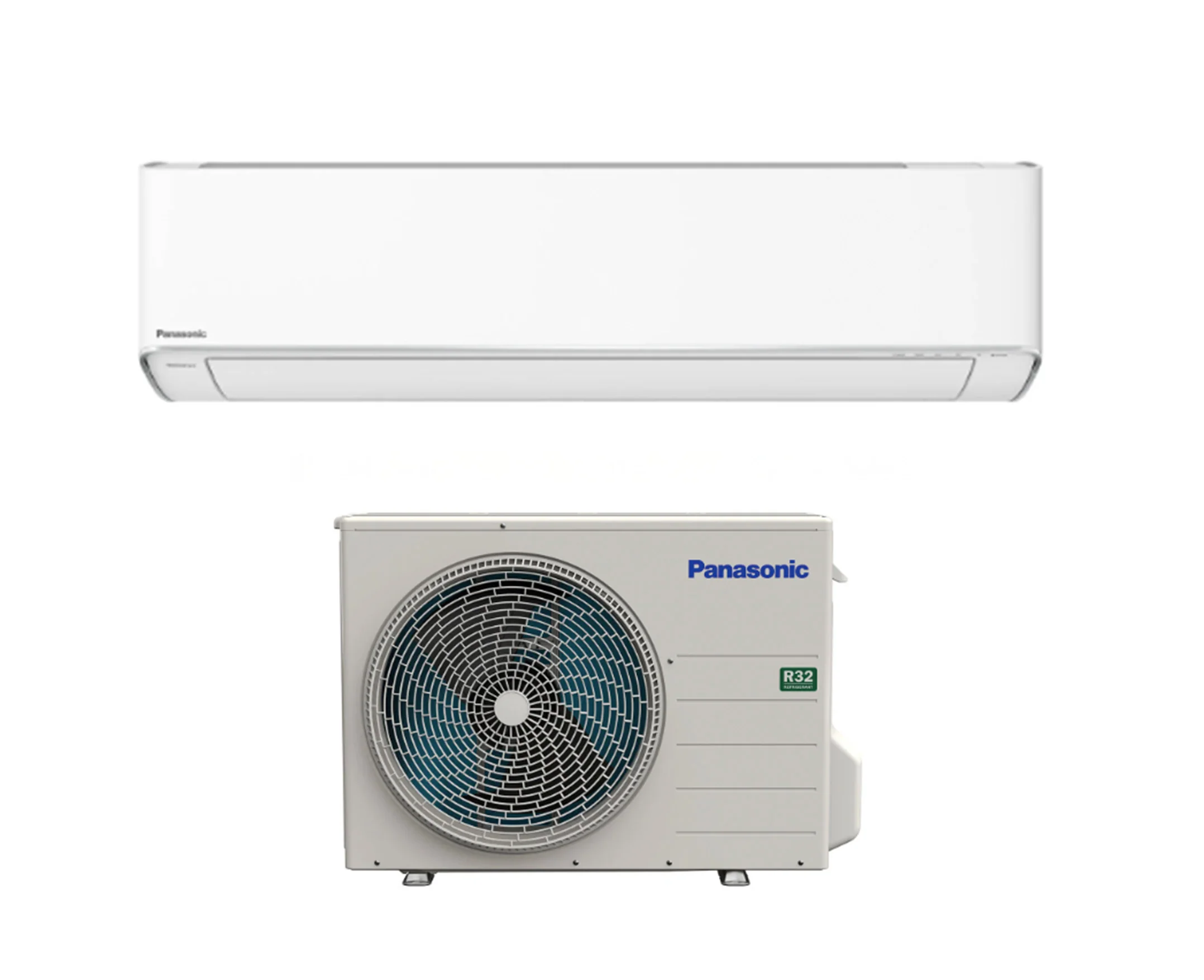

Panasonic ClimaPure XZ Series with nanoe-X virus bacteria suppression feature - Single Zone 24k BTU - Heat & Cool Pump System

Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XZ ductless system features an improved nanoe™ X — a built-in air and surface purification technology that provides a comfortable environment for everyone.

*Parts sold separately - line sets, communication wires, disconnects, and pads not included

Product Specifications

• Indoor Unit - CS-XZ24AKUAW
• Outdoor Unit - CU-XZ24AKUAC
• Line set required but not included - 1/4" x 5/8"
• Communication wires required but not included - 14/4
• Capacity Cooling (Btu/h) / KW - 24,000 (6,100 - 27,200) / 7.02 KW
• Capacity Heating (Btu/h) / KW - 28,800 (6,800 / 37,200) /8.46 KW
• Moisture Removal - High (pints/H) - 7.6
• Indoor Air Flow - Cool/Heat (High) - 685/695 CFM
• SEER2 - 20.50
• EER2 - 11.75
• HSPF2 - REgion 4 / Region 5 - 11.00 / 8.30
• Power Supply (V, Phase, Hz) - 208 / 230V, Single Phase, 60Hz
• Power Input - Cooling (W) - 2040
• Power Input - Heating (W) - 2500
• Dimensions (indoor) (H x W x D) - 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm)
• Dimensions (Outdoor) (H x W x D) - 24-1/2" x 32-15/32" x 11-25/32" (622 x 824 x 299 mm)
• Weight (indoor/outdoor) - 31lbs / 110lbs

Panasonic Limited Warranty

Rebate Program

Return Policy

• 25% Restocking Fee
• Oswald Supply must pre-approve all RMAs (Return Material Authorizations)
• Freight on return must be covered
• All material must be in its original pacjaging and in 100% resalable condition unless deemed defective
• The customer is responsible for return shipping, return labels are not provided.
• Obsolete and discontinued models are not eligible for return
