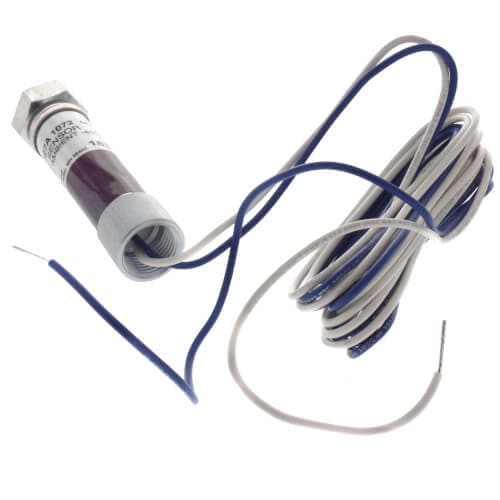

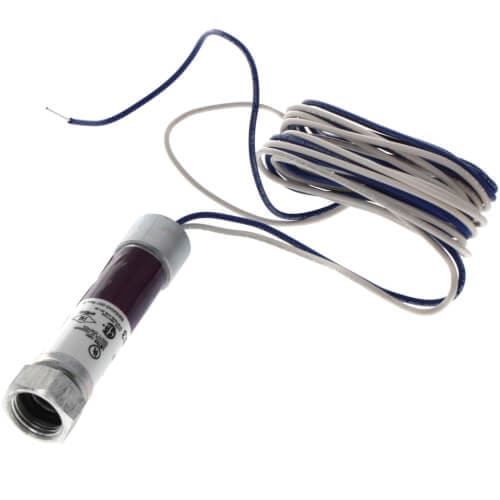

Honeywell #C7027A1072, Minipeeper UV Detector, -40 Deg-250 Deg F

Minipeeper UV Detector, -40 Deg-250 Deg F

Includes: 1/2 in. NPT threaded spud connector.

Overview:

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.

Features:
Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
Detectors can be wired in parallel for difficult sighting applications.
C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
Allows for blast tube mounting due to compact size.
C7044 mounts with a two screw bracket.
The C7044 UV sensor tube is enclosed in a stainless steel housing.
C7044 has the capability of side or end viewing in flame monitoring applications.
