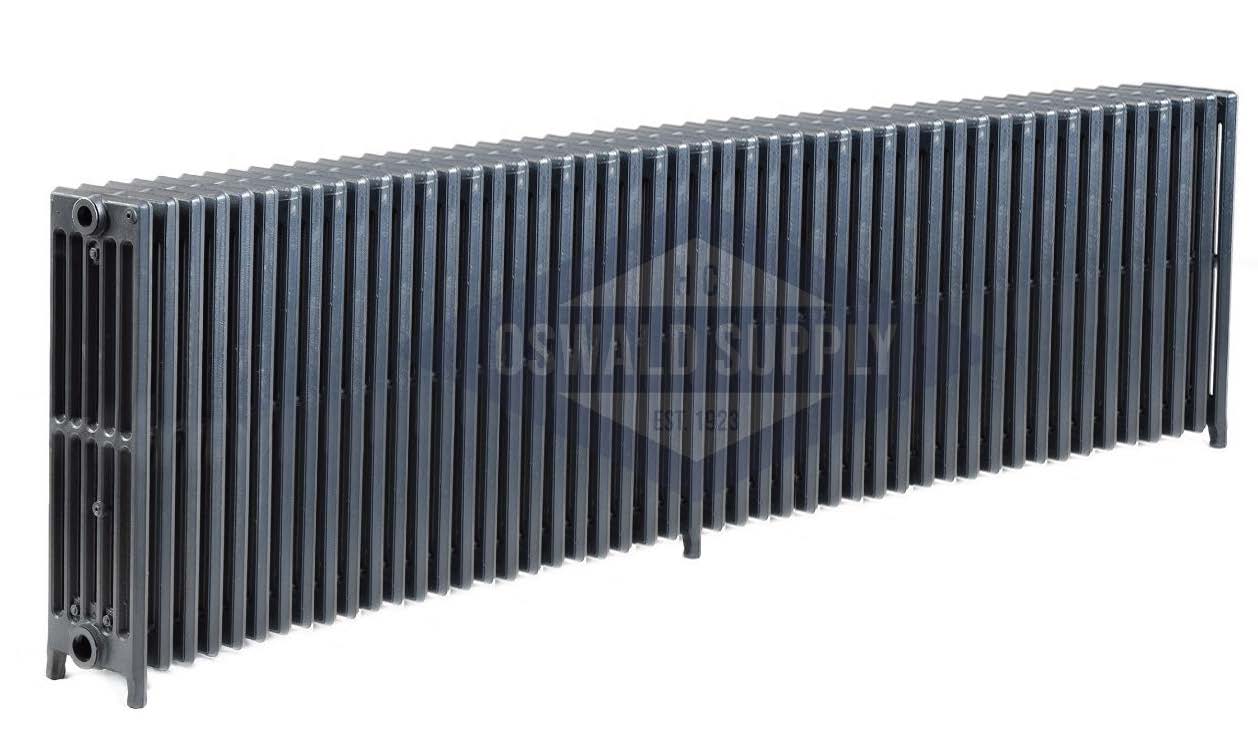

Cast Iron Radiator, Size: 6-15/16" Width x 25" Height x 84" Length - 48 Sections Water/Steam Output, Custom Build (Non-Returnable) - Ships in 2-3 Weeks

Cast Iron Radiators provide heat in a low profile package. Radiant heat combines with convected heat to shield outer walls and windows, thus stopping cold air infiltration into living spaces.

Cast Iron Radiator Spec Sheet

• Free-standing

• 6 Tubes

• 48 Sections

• Steam Output 34,560 BTU, Water 180 Degree Output 24,480 BTU

• Lower and slimmer than most conventional radiators

• Cast iron provides very quiet operation

• Offered from 4 section up to 56 sections, which easily enables the installation of multiple units

• Efficient radiator replacement option

• Suitable for water or steam applications

SKU: MR625X48

Suggested Install Instructions:

When installing fittings to radiator, use a small amount of pipe dope or a small amount of Teflon tape (only once or twice around thread) on the fitting. Hand-tighten fitting into radiator. Using no longer than a 10" or 12" wrench, tighten it 1 - 2 full turns. This is a suggested method only.

Included with all radiators is (1) 1 x 1/8" bushing, used for air valve installation.
