Cast Iron Radiator, Size: 4-7/16" Width x 25" Height x 98" Length - 56 Sections, 4 Tubes, Water/Steam, Custom Build (Non-Returnable) - Ships in 2-3 Weeks

Cast Iron Radiator provides heat in a low profile package. Radiant heat combines with convected heat to shield outer walls and windows, thus stopping cold air infiltration into living spaces.

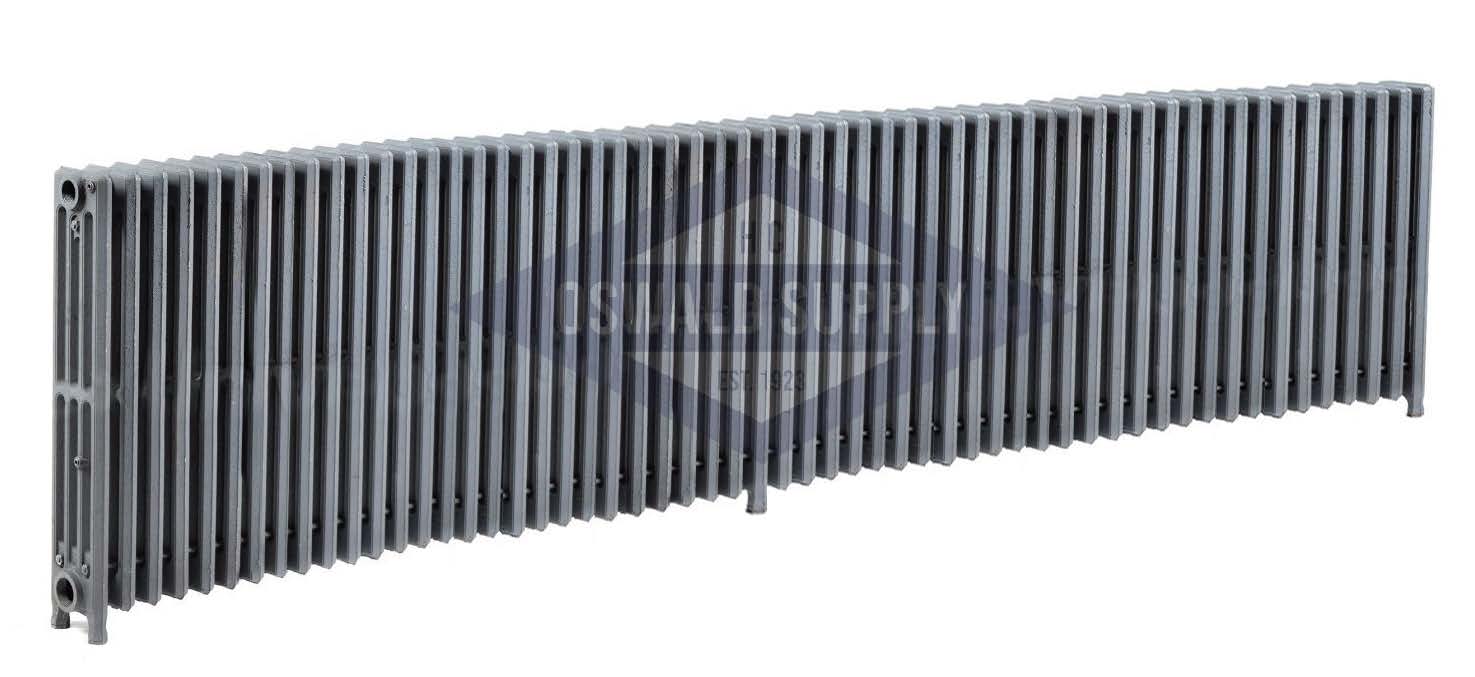

Note: Product Image is a representation of various heights & sizes

Cast Iron Radiator Spec Sheet

• Free-standing
• 4 Tubes
• 56 Sections
• Steam Output 26,880 BTU, Water 180 Degree Output 19,040 BTU
• Lower and slimmer than most conventional radiators
• Cast iron provides very quiet operation
• Offered from 4 section up to 56 sections, which easily enables the installation of multiple units
• Efficient radiator replacement option
• Suitable for water or steam applications

SKU: MR425X56

Suggested Install Instructions:

When installing fittings to radiator, use a small amount of pipe dope or a small amount of Teflon tape (only once or twice around thread) on the fitting. Hand-tighten fitting into radiator. Using no longer than a 10" or 12" wrench, tighten it 1 - 2 full turns. This is a suggested method only.

Included with all radiators is (1) 1 x 1/8" bushing, used for air valve installation.
