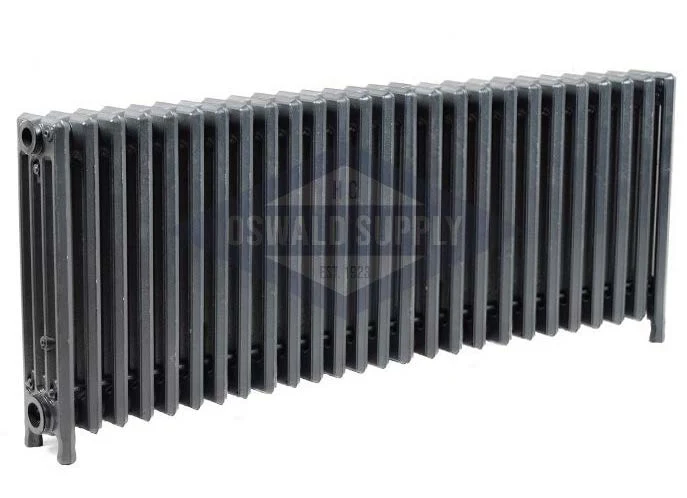

Cast Iron Radiator, Size: 4-7/16" Width x 19" Height x 45-1/2" Length - 26 Sections, 4 Tubes, Water/Steam

Cast Iron Radiators provide heat in a low profile package. Radiant heat combines with convected heat to shield outer walls and windows, thus stopping cold air infiltration into living spaces.

Cast Iron Radiator Spec Sheet

Features:

• Order is based on number of sections needed
• Free-standing
• 4 Tubes
• 26 Sections
• Steam Output 9,984 BTU, Water 180 Degree Output 7,072 BTU
• Lower and slimmer than most conventional radiators
• Cast iron provides very quiet operation
• Offered from 4 section up to 56 sections, which easily enables the installation of multiple units
• Efficient radiator replacement option
• Suitable for water or steam applications


SKU: MR419X26

Suggested Install Instructions:

When installing fittings to radiator, use a small amount of pipe dope or a small amount of Teflon tape (only once or twice around thread) on the fitting. Hand-tighten fitting into radiator. Using no longer than a 10" or 12" wrench, tighten it 1 - 2 full turns. This is a suggested method only.

Included with all radiators is (1) 1 x 1/8" bushing, used for air valve installation.
